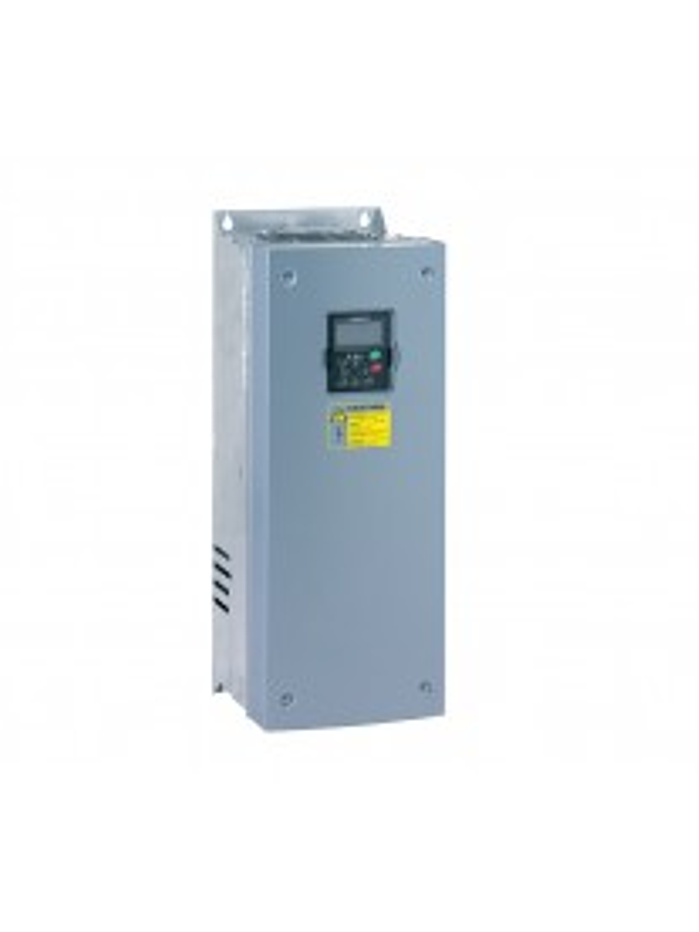

Name: NXS00125-A5H1SSS-A1A2000000 VACON NXS drive, 5.5kW, 12A, 380 ÷ 500V, IP54
Brand: VACON
SKU: NXS00125-A5H1SSS-A1A2000000
Price: 2598744.0 CLP
Availability: InStock

Descripción

NXS00125-A5H1SSS-A1A2000000 VACON NXS drive, 5.5kW, 12A, 380 ÷ 500V, IP54

Application:	designed for control of pumps, fans, conveyors, cranes, lifts, elevators, feeders, mixers.
Control perfomance:	Open loop vector control (5-150% of base speed) Ramp times (acceleration and deceleration): 0 ÷ 3000 s
Frame:	FR4
Overload:	110% / 150%
Power:	5.5kW (110% 1min/10min) 4kW (150% 1min/10min)
Current:	12A (110% 1min/10min) 9A (150% 1min/10min)
Voltage:	380 ÷ 500VAC
Input:	2 x AI 6 x DI 10V, ref. 24V in
Output:	1 x AO 1 x DO 2 x RO + TI
*I/O expander options:*	*See data sheet*
Communication modules (optional):	RS 485, ModBus/TCP, Profibus DP, DeviceNet, CANopen..
Output frequency:	0 ÷ 320Hz
Ambient temperature:	-10 ÷ 50°C
Braking:	DC brake: 30% of TN (without brake resistor), flux braking
Emmisions:	EMC class H
Protection class:	IP54
Dimensions (W x H x D):	128 x 292 x 190mm
Weight:	5kg
Approvals:	see data shee
