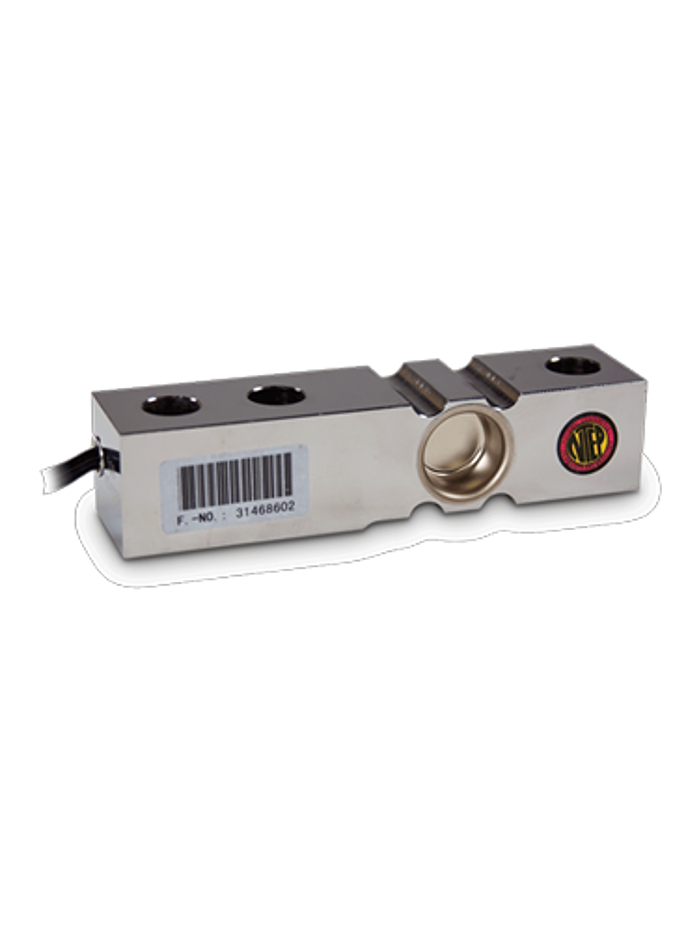

HBM H35 Stainless Steel, Single-Ended Beam Load Cell Celda de carga H35
Descripción
Celda de carga H35-2500 HBM
Códigos de productos
| Código | Descripción |
|---|---|
| 84818 | Load Cell,SEB H35-500- 20760 500lb 20ft HBM 3mv/v 350 OHM EW NTEP III 5M FM SST WS |
| 64876 | Load Cell,SEB H35-1K 20760 1000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67 |
| 64877 | Load Cell,SEB H35-2.5K 20760 2500lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67 |
| 64878 | Load Cell,SEB H35-4K 20760 4000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67 |
| 64879 | Load Cell,SEB H35-5K 20760 5000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67 |
H35 Load Cell Specifications
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: | Seal Type: Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: | Cable Length: Cable Diameter: Cable Color Code: Warranty: Approvals: |
H35 Load Cell Dimensions
| Rated Capacity | A1 | A2 | A3 | A4 | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||||
| 500 to 5,000 | 1/2-20 UNF-2B | 0.62 | 0.53 | 0.53 | 1.21 | 1.19 | 5.12 | 1.00 | 3.00 | 0.50 | 2.85 | 1.12 |
